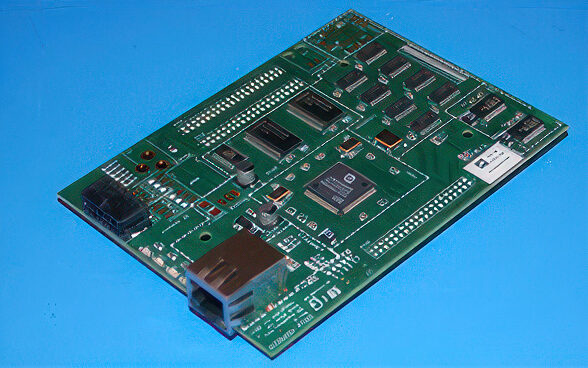

ARM I/O Boards
The ARM I/O boards comprise a series of small MCU boards that take analog and digital inputs and output a variety of types of signals.
Technical
Key Features
Configuration
The I/O boards can be configured and are available in many input options and many output options. The all run a real time OS with a 1 mSec clock.
Warranty
The IO boards carry a 2 year warranty.
Specifications
Technical & Environmental
Physical
32 bit ARM Cortex-M4 processor w/FPU (TM4C1294)
8 x ADC 12 bits (programmable 0->5, 0->10, -5-> +5 and -10 -> +10 V)
16 x ADC 12 bit 3V
84 GPIO (not isolated) 5V tolerant
3 x 32 bit counter
RJ45 Ethernet
USB Mini-B
Firmware
Real time Operating System (clocked 1Khz)
I/O sampled at 1KHz (1 mSec)
TCP/IP BSD socket connection/UDP (up to 400 Hz)
Web server for configuration
Boot Loader to upgrade firmware over the network
configuration programmable in EEPROM
Static or DHCP network addressing
Watch dog timer
Outputs
TCP/IP and UDP with POE
USB HID
RS232/RS422
CAN
Environmental
5-28VDC supply
-40C to 105C operation
Operating Humidity

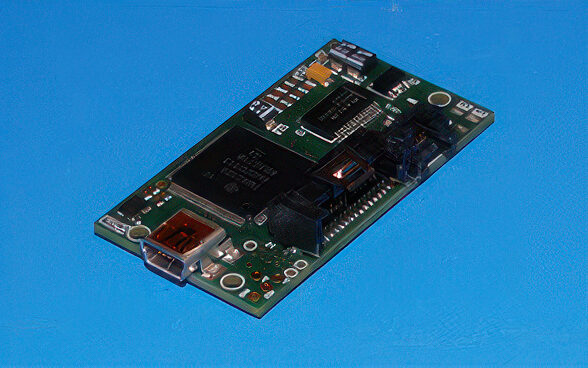

ARM I/O Boards
Options
A variety of boards are available. Custom boards can be designed and built in 4-6 weeks.
